Description

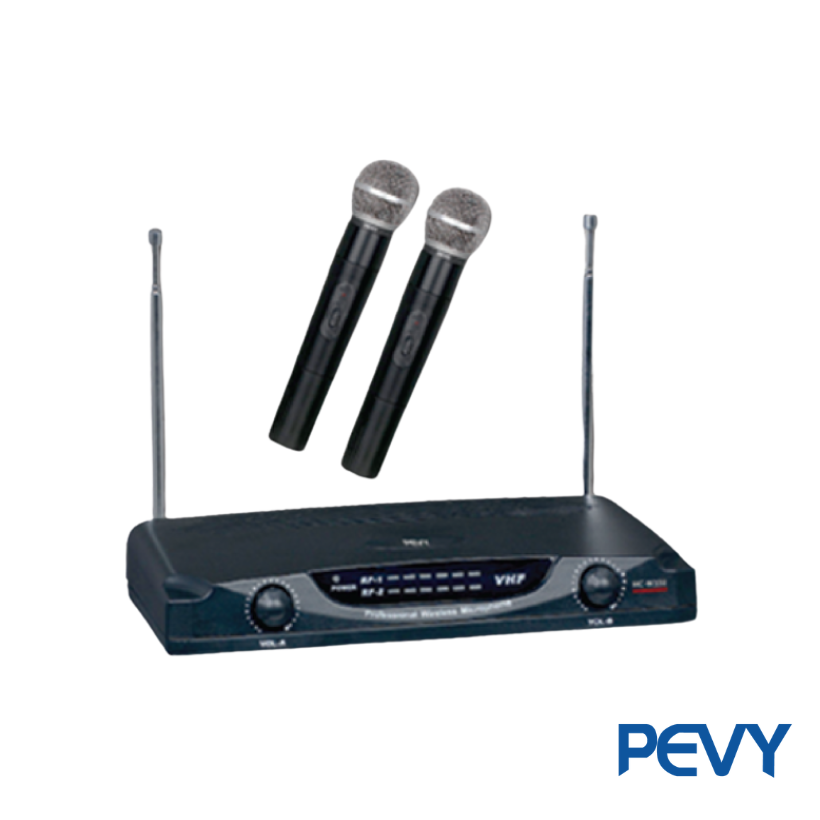

PEVY WHF WIRELESS MICROPHONE
MODEL: MC-W33(II)
This is our wireless microphone system, meticulously designed to deliver unparalleled audio performance. The microphone boasts exceptional Frequency Stability of +-0.005%, ensuring crystal-clear sound reproduction. With a powerful RF Output Power of <=30mW and superior Spurious Rejection (>40dB), it guarantees reliable and interference-free transmissions. Operating in the VHF Modulation Mode, the microphone offers a Maximum Deviation Range of +-75KHz, catering to dynamic and electric condenser microphone modes. The Pre-Emphasis of 50 μS enhances signal quality, while the convenient 9V Battery power supply ensures lasting performance.
The receiver complements this system with a broad Audio Frequency Response (80-12000Hz) and a robust Dynamic Range of >=60dB, delivering a rich and detailed sound spectrum. With System Distortion kept to a minimum (<=1%) and an impressive Signal-to-Noise Ratio of >=60dB, it guarantees a clean and distortion-free audio experience. Operating seamlessly in temperatures ranging from 5 degrees Celsius to 45 degrees Celsius, the receiver exhibits exceptional Sensitivity (<2μV) and Image Rejection (>40dB). The 600-ohm Audio Output Impedance ensures compatibility with various audio systems. Elevate your audio game with our wireless microphone system, where cutting-edge technology meets unmatched reliability.
Key Features
Hand-held / Lapel Microphone:
- Frequency Stability: +-0.005%
- RF Output Power: <=30mW
- Spurious Rejection: >40dB
- Modulation Mode: VHF
- Maximum Deviation Range: +-75KHz
- Microphone Mode: Dynamic / Electric Condenser
- Pre-Emphasis: 50 μS
- Power Supply: 9V Battery
Receiver:
- Audio Frequency Response: 80-12000Hz
- Dynamic Range: >=60dB
- System Distortion: <=1%
- Signal to Noise Ratio >=60dB
- Operation Temperature Range: 5°C - 45°C
- Sensitivity: < 2μV
- Image Rejection: >40dB
- Audio Output Impedance: 600 ohms
