Description
THE BREEZEIN SERIES

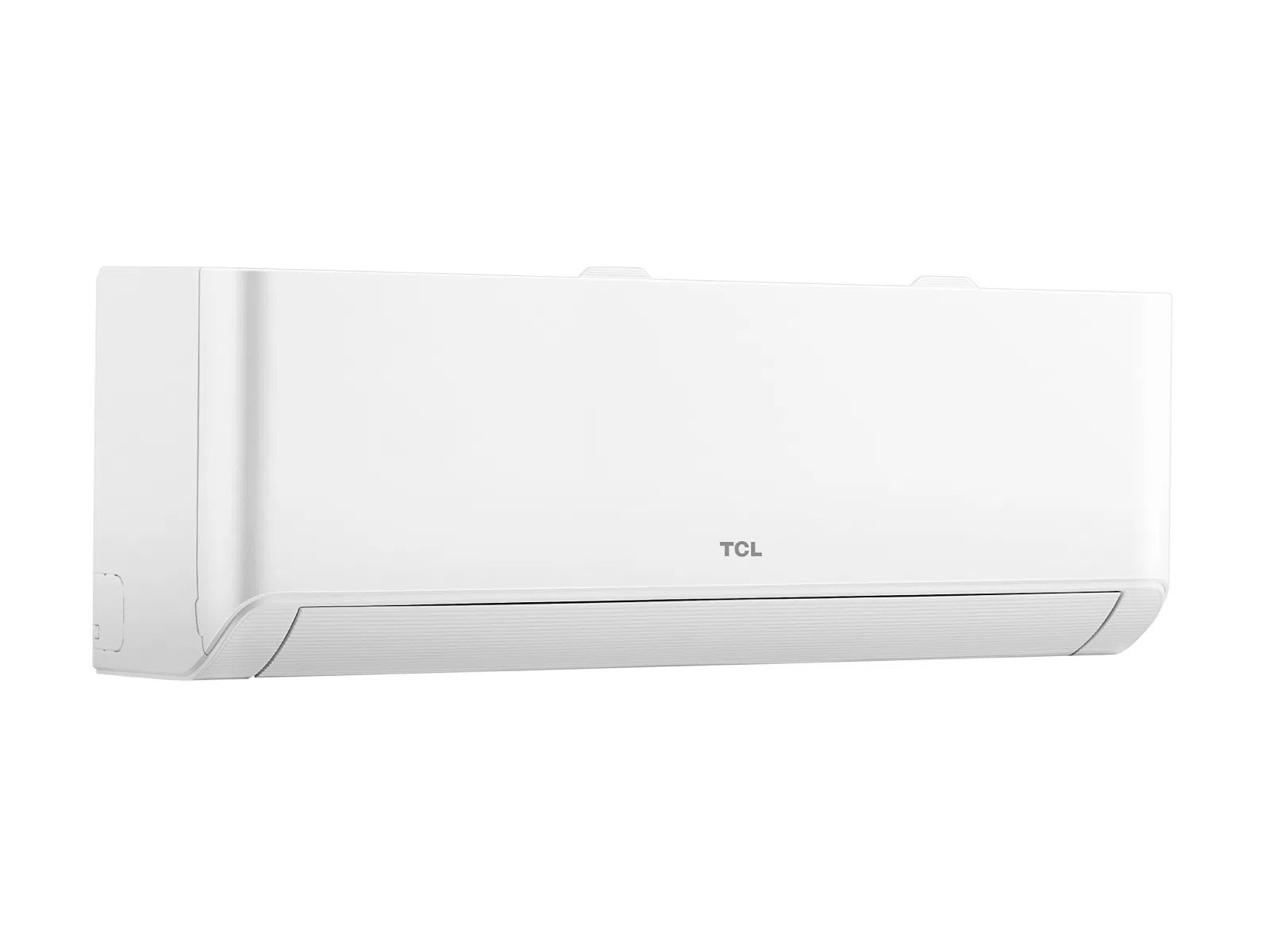

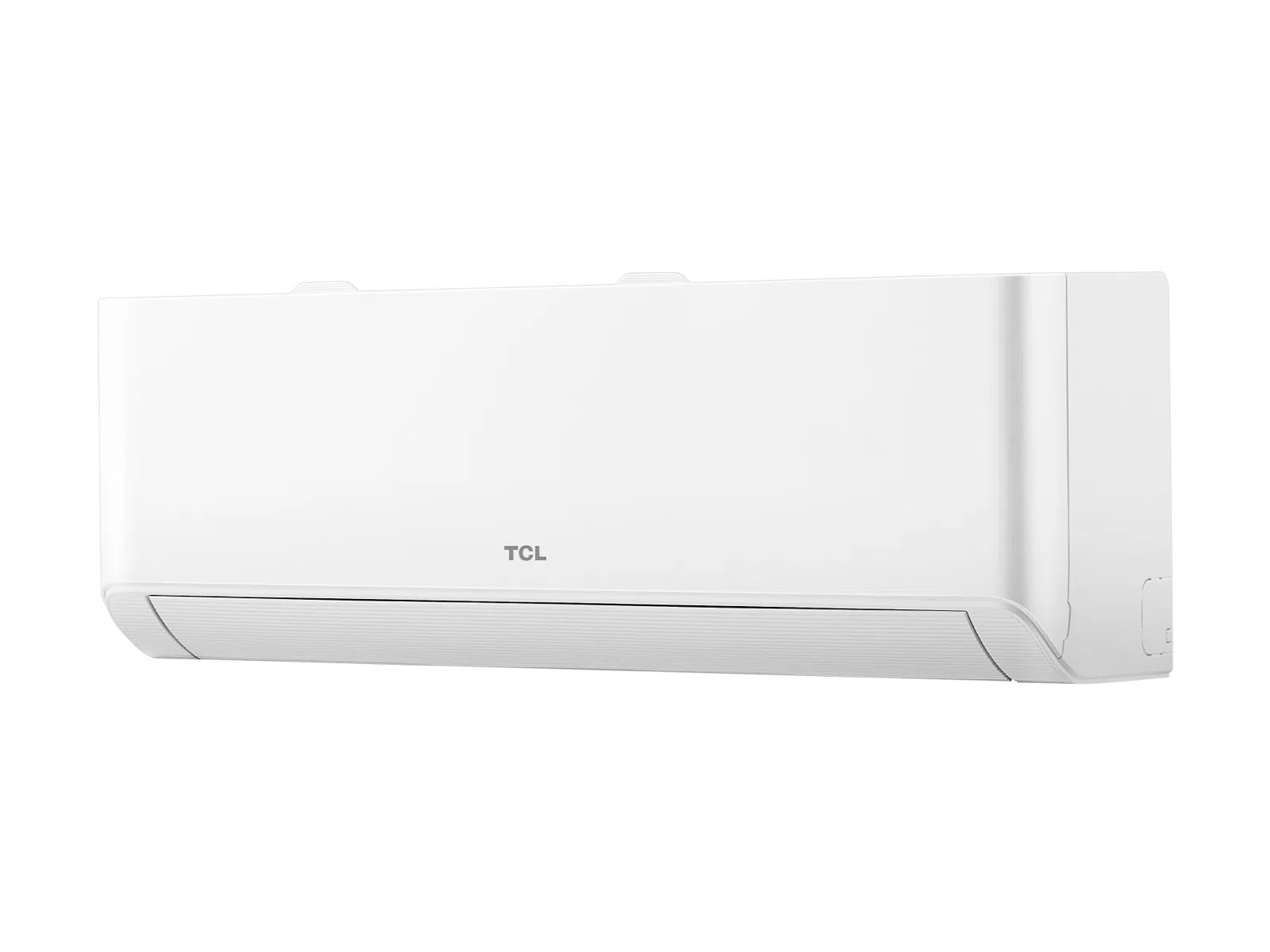

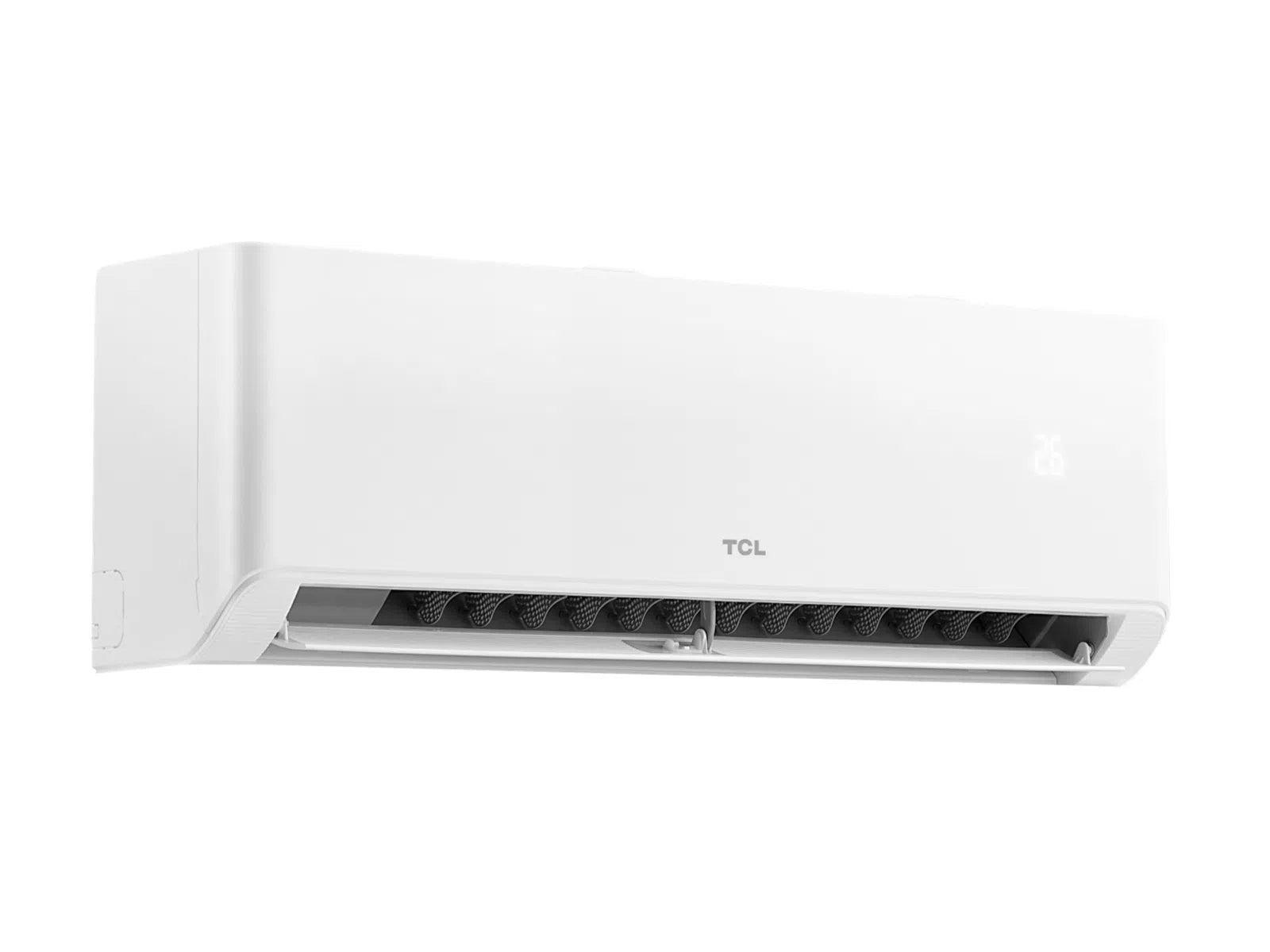

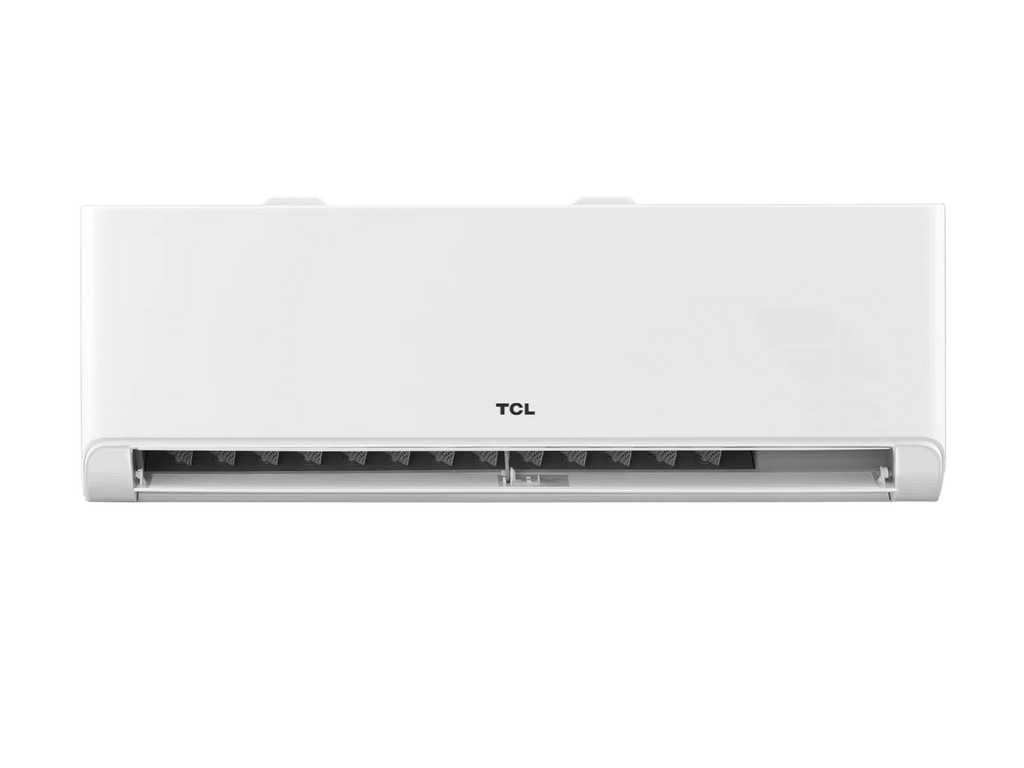

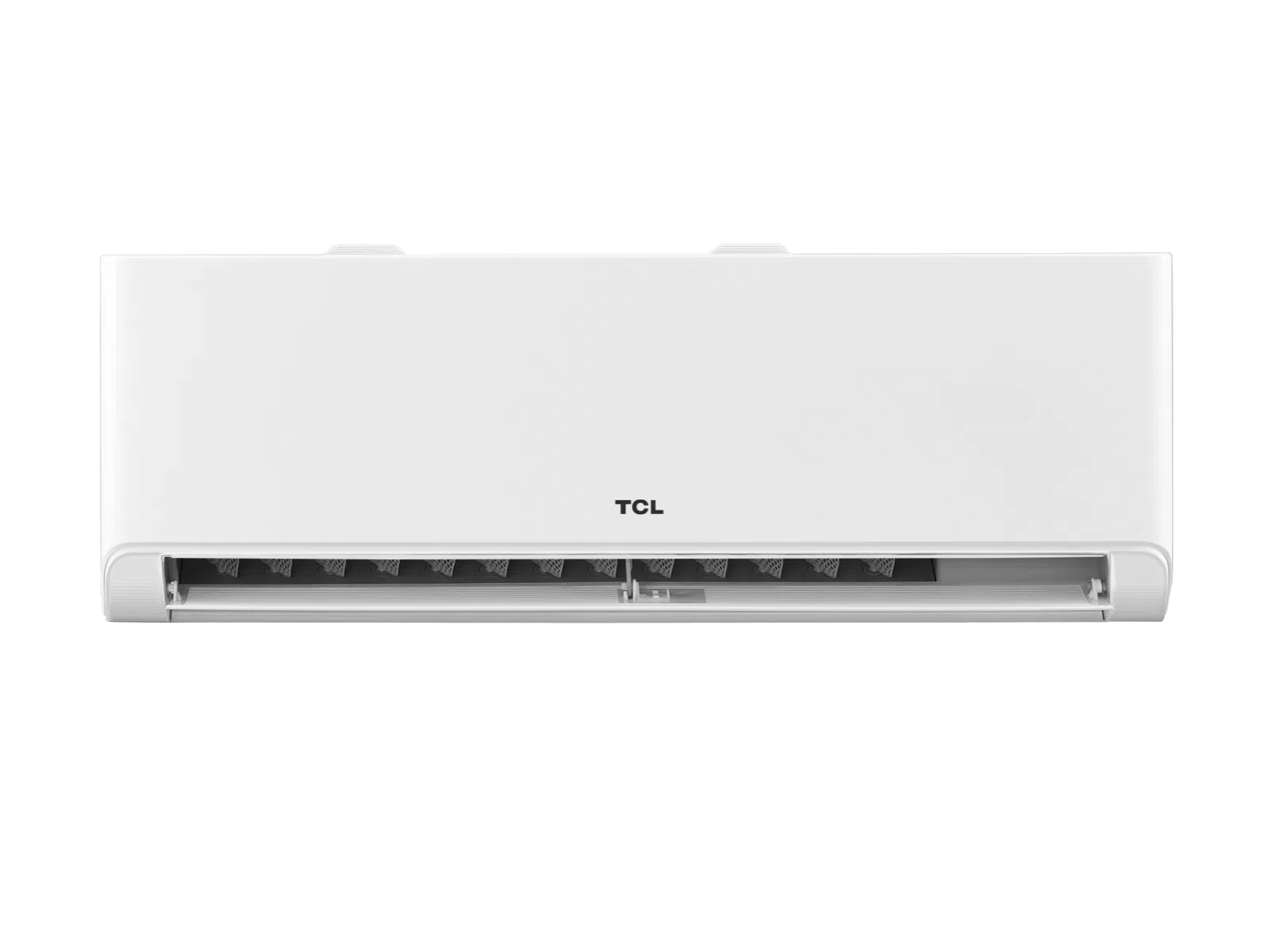

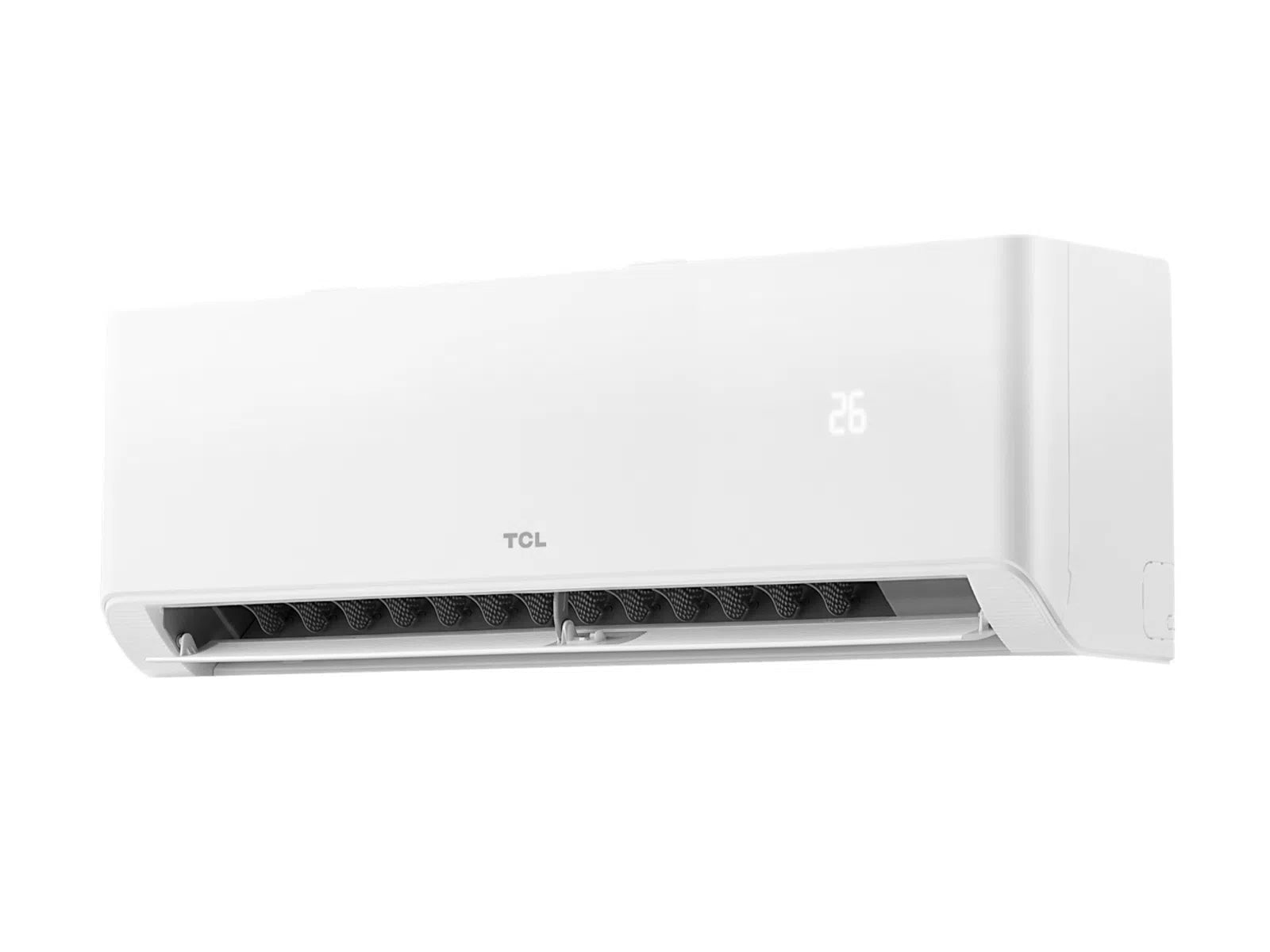

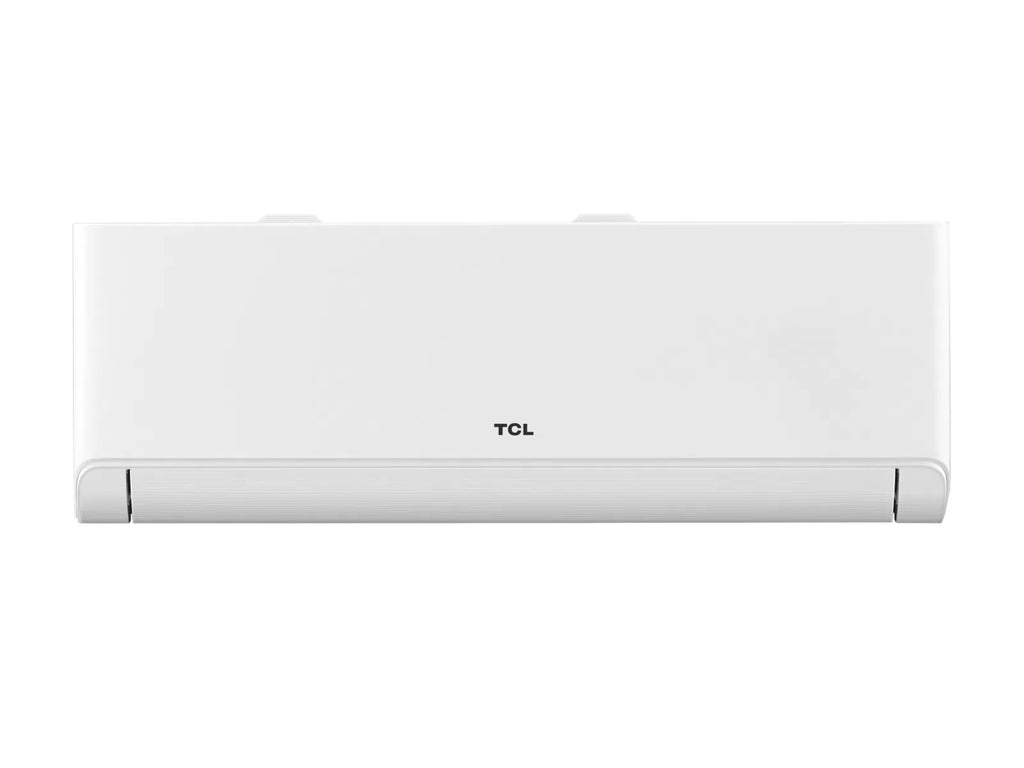

BreezeIN Air Conditioner
- · Gentle Breeze
- · Hotel Mode Available
- · Smart Control with Wi-Fi, TCL Home App, Google Home, and Alexa
- · 4-step Self-cleaning
- · 4 Easy Design
- · A++ Energy Efficiency
All prices are inclusive of back-to-back installation. Any extra piping and/or removal of existing AC will incur additional charges accordingly.
Air conditioner deliveries to Temburong, Tutong, Seria and KB areas will incur an extra fee.
Any Dismantle and Disposal Unit - $15.00 per unit
Additional Piping - @$32.00 per meter
Type - heating pump
Declared cooling capacity (W) - 5100(1250-5900)
Declared heating capacity (W) - 5130(1250-6080)
Pdesignc (W) - 5100
SEER declared (W/W) - 6.1
Energy Class - A++
EER declared (W/W) - 3.24
COP declared (W/W) - 3.71
SCOP Average declared (W/W) - 4
Energy Class(Average) - A+
Indoor sound power(S/H/M/L/Mute) (dB(A) - 54/50/47/43/36
Outdoor sound power dB(A) - 65
Power supply - 220-240V~/50Hz/1P
Power supply side - Outdoor
Voltage Range(V) - 165~265
Cooling Operating Current (A) - 8.2(1.7~12.0)
Heating Operating Current (A) - 7.2(1.7~13.0)
Cooling Power consumption (W) - 1574(330-2350)
Heating Power consumption (W) - 1382(340-2550)
Refrigerant type/Charge/GWP/CO2 equivalent - R32/1.00kg/675/0.675tonnes
Indoor air circulation Cooling/heating (m3/h) - 1
Gas Connecting Pipe (inches) - 3/8"
Liquid Connecting Pipe (inches) - 1/4"
Application area (m²) - 20~35
Operation temperature range (℃) - 16-31
Outdoor Ambient temperature range (℃) - Cooling:15-53/Heating:-20-24
Indoor Ambient temperature range (℃) - Cooling:17-32/Heating:0-27
Indoor Net dimensions (W x H x D) (mm) - 920×306×195
Outdoor Net dimensions (W x H x D) (mm) - 853×602×349
Indoor Net weight (kg) - 10.5
Outdoor Net weight (kg) - 31
Indoor Packing dimensions (W x H x D) (mm) - 990×380×265
Outdoor Packing dimensions (W x H x D) (mm) - 890×628×385
Indoor Gross weight (kg) - 12.5
Outdoor Gross weight (kg) - 34
