Description
THE BREEZEIN SERIES

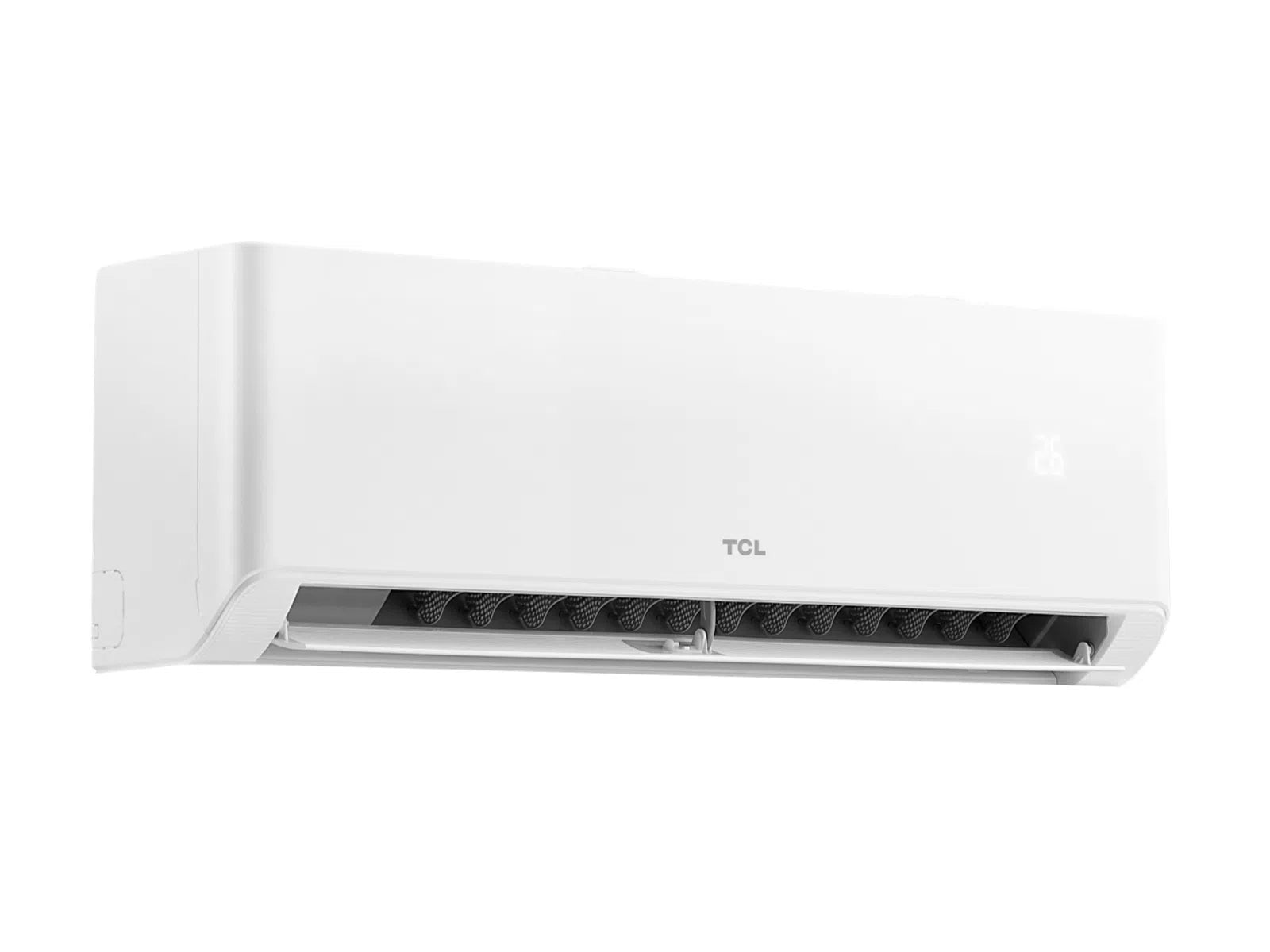

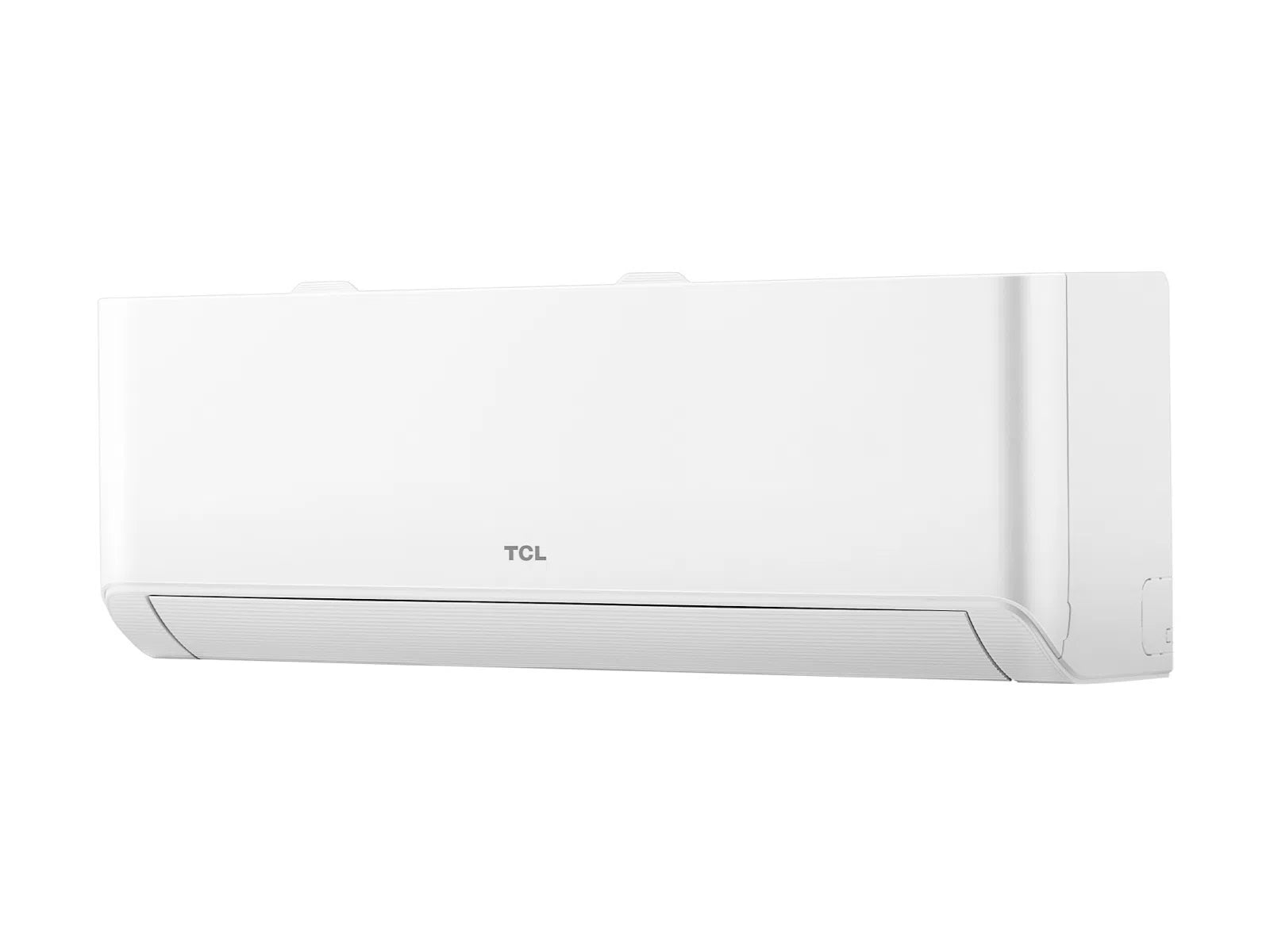

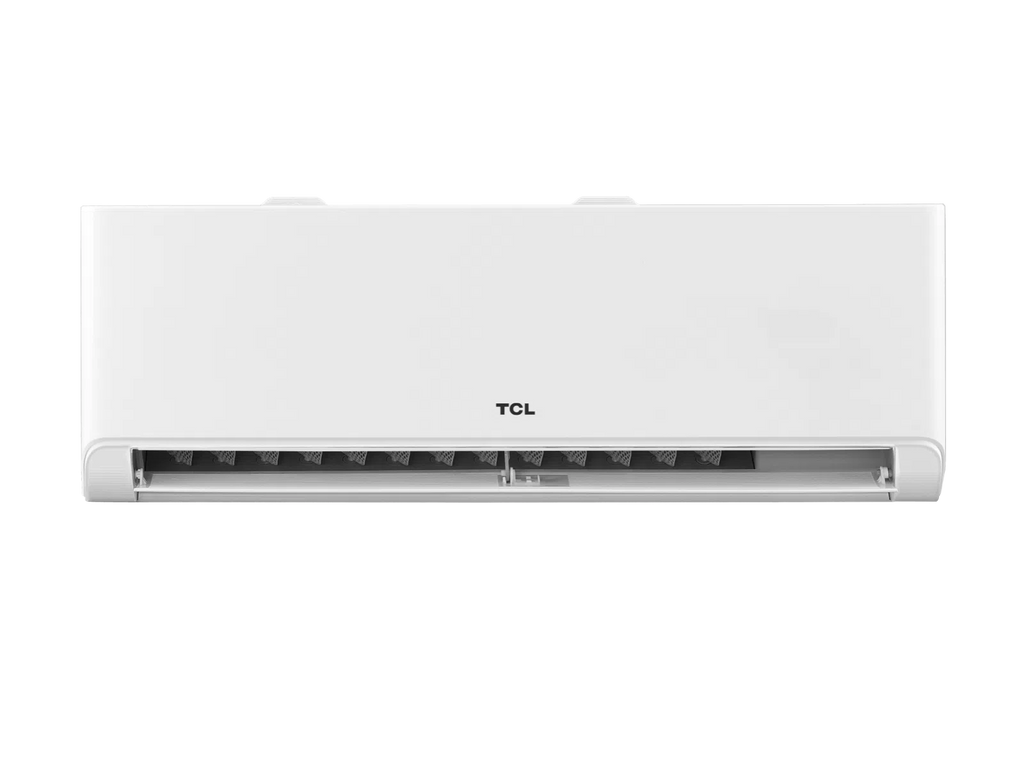

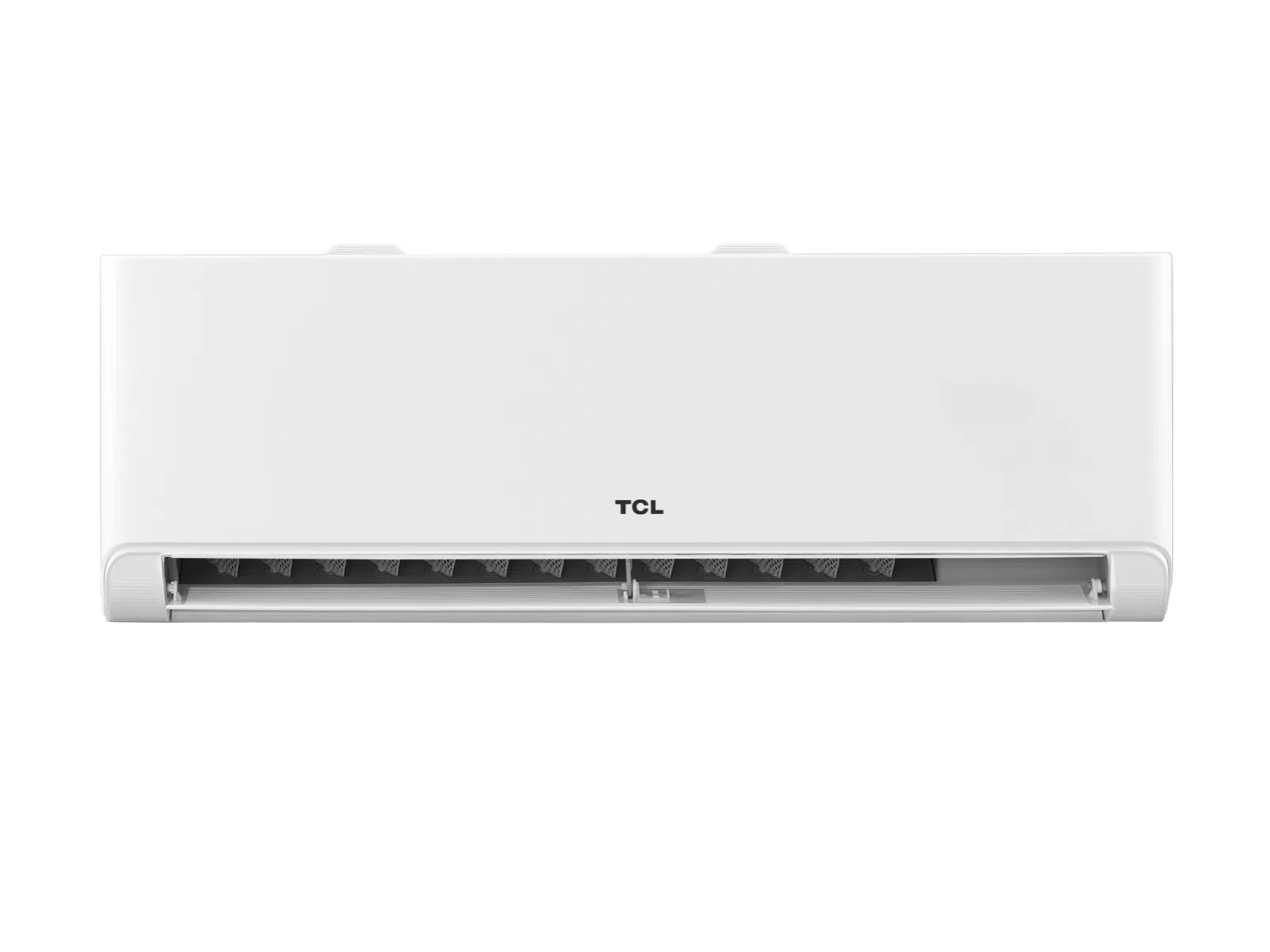

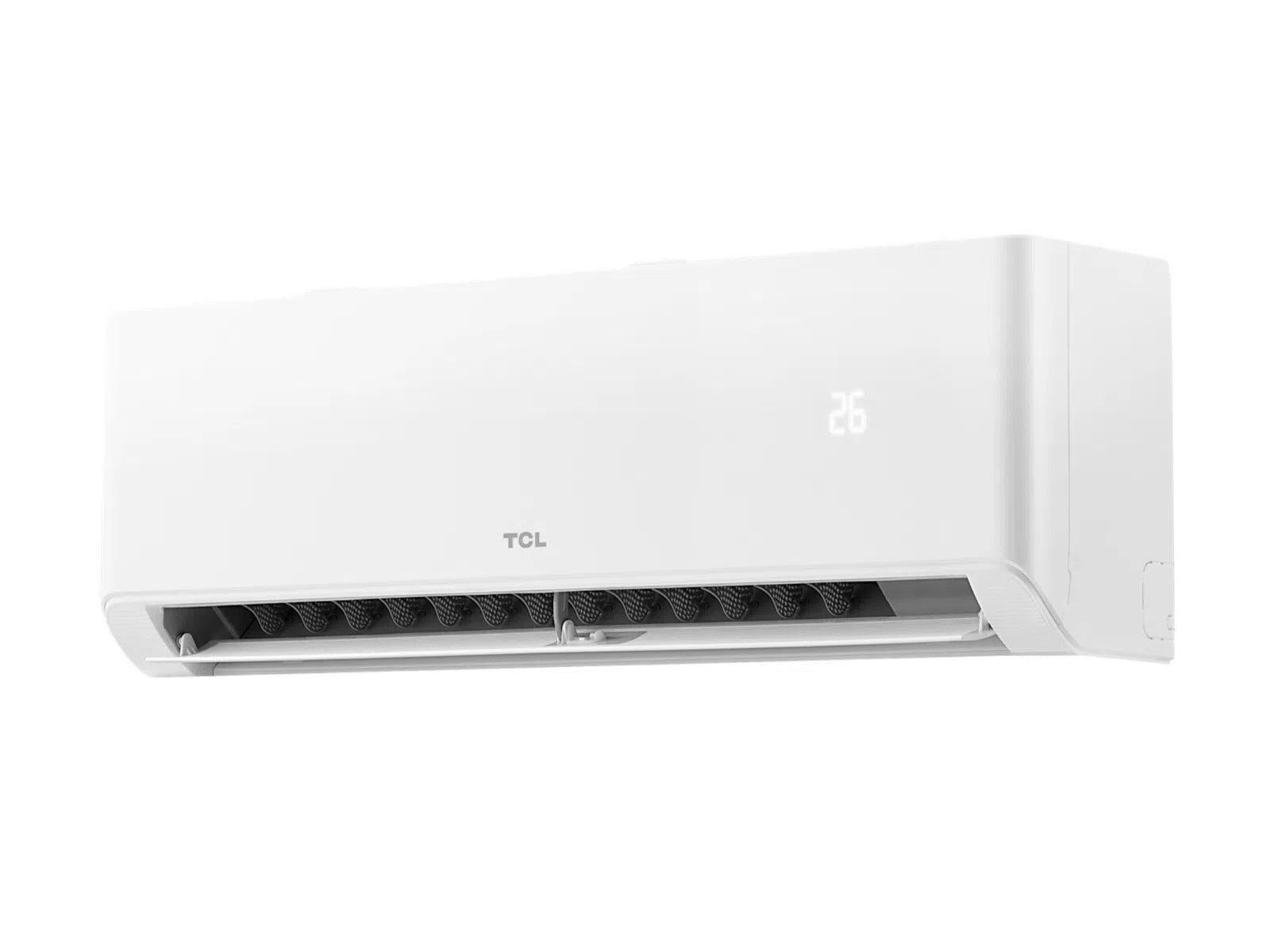

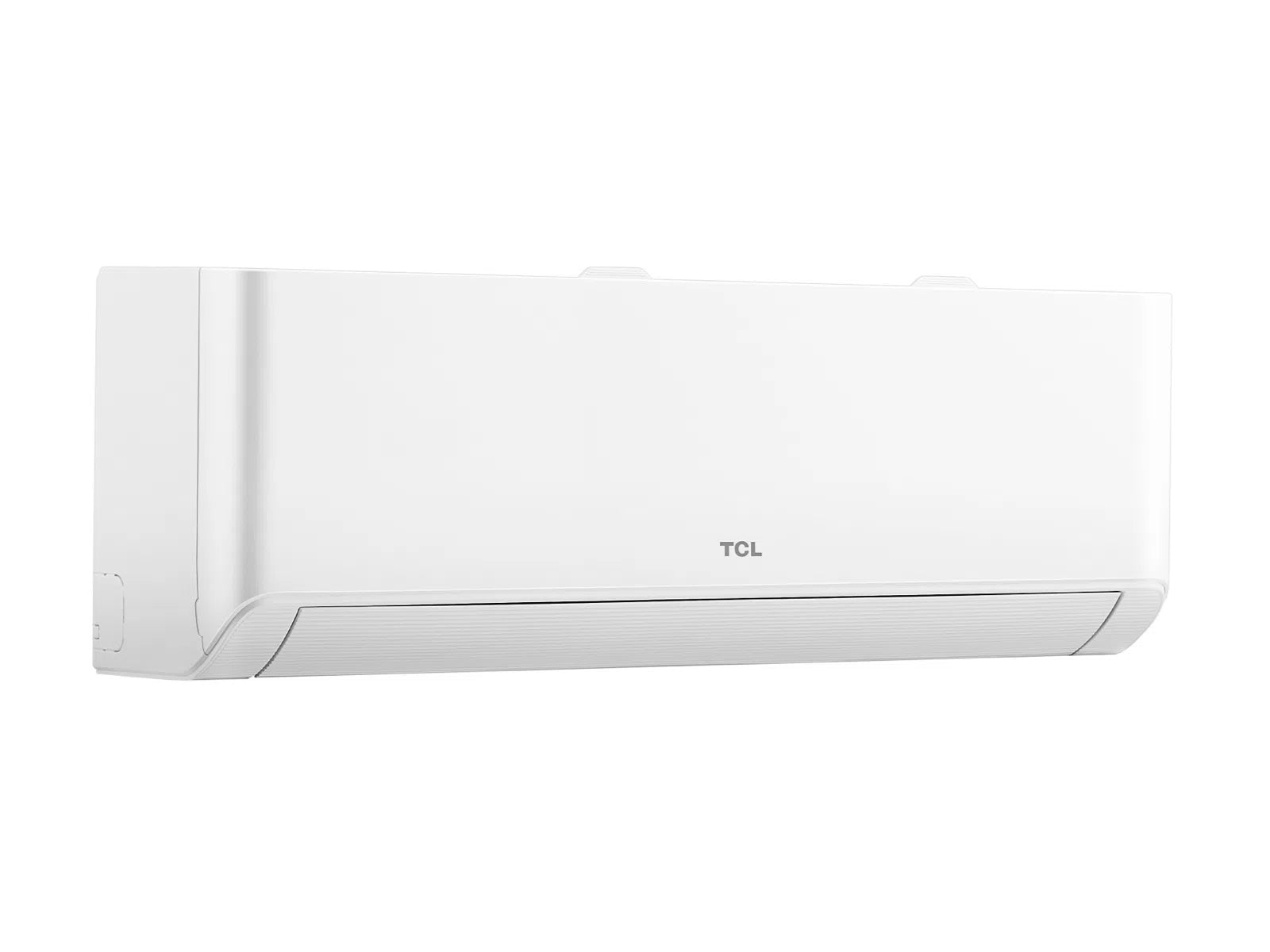

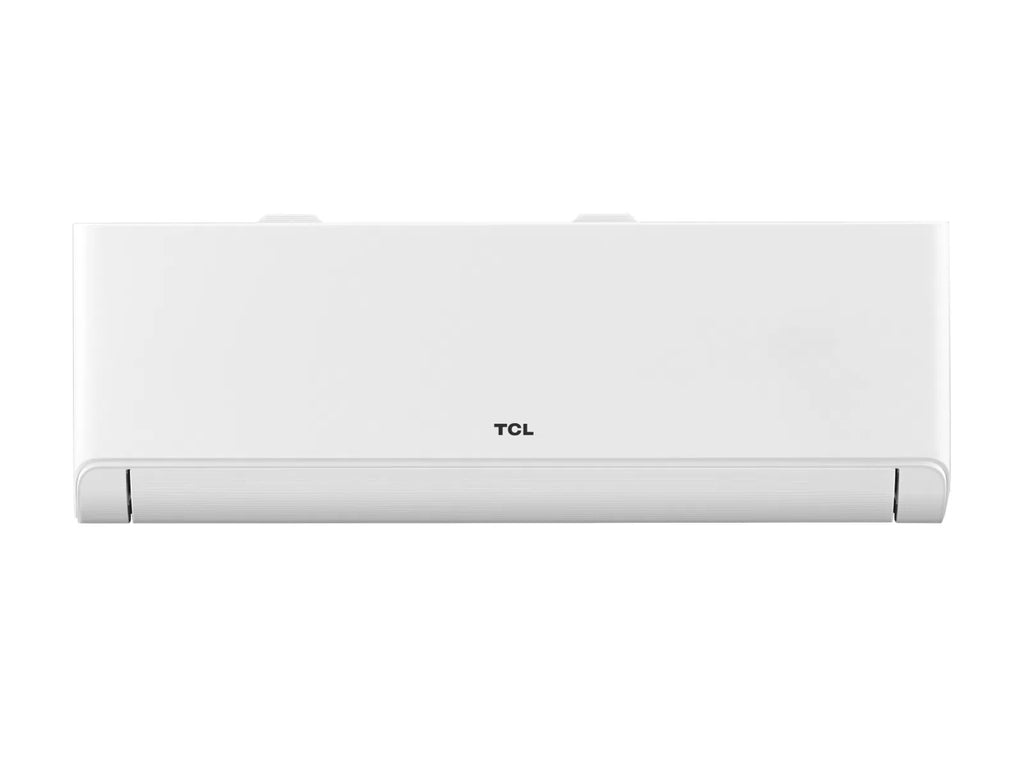

BreezeIN Air Conditioner
- · Gentle Breeze
- · Hotel Mode Available
- · Smart Control with Wi-Fi, TCL Home App, Google Home, and Alexa
- · 4-step Self-cleaning
- · 4 Easy Design
- · A++ Energy Efficienc
All prices are inclusive of back-to-back installation. Any extra piping and/or removal of existing AC will incur additional charges accordingly.
Air conditioner deliveries to Temburong, Tutong, Seria and KB areas will incur an extra fee.
Any Dismantle and Disposal Unit - $15.00 per unit
Additional Piping - @$32.00 per meter
Type - heating pump
Declared cooling capacity (W) - 3400(600~3750)
Declared heating capacity (W) - 3500(600~3900)
Pdesignc (W) - 3400
SEER declared (W/W) - 6.1
Energy Class - A++
EER declared (W/W) - 3.23
COP declared (W/W) - 3.71
SCOP Average declared (W/W) - 4
Energy Class(Average) - A+
Indoor sound power(S/H/M/L/Mute) (dB(A) - 52/48/43/39/32
Outdoor sound power dB(A) - 62
Power supply - 220-240V~/50Hz/1P
Power supply side - Outdoor
Voltage Range(V) - 165~265
Cooling Operating Current (A) - 4.6(1.3～9.0)
Heating Operating Current (A) - 4.0(1.3～9.0)
Cooling Power consumption (W) - 1080(160～1600)
Heating Power consumption (W) - 900(150～1350)
Refrigerant type/Charge/GWP/CO2 equivalent - R32/0.53kg/675/0.358tonnes
Indoor air circulation Cooling/heating (m3/h) - 18/19"
Gas Connecting Pipe (inches) - 3/8"
Liquid Connecting Pipe (inches) - 1/4"
Application area (m²) - 14~22
Operation temperature range (℃) - 16-31
Outdoor Ambient temperature range (℃) - Cooling:15-53/Heating:-20-30
Indoor Ambient temperature range (℃) - Cooling:17-32/Heating:0-30
Indoor Net dimensions (W x H x D) (mm) - 790×275×192

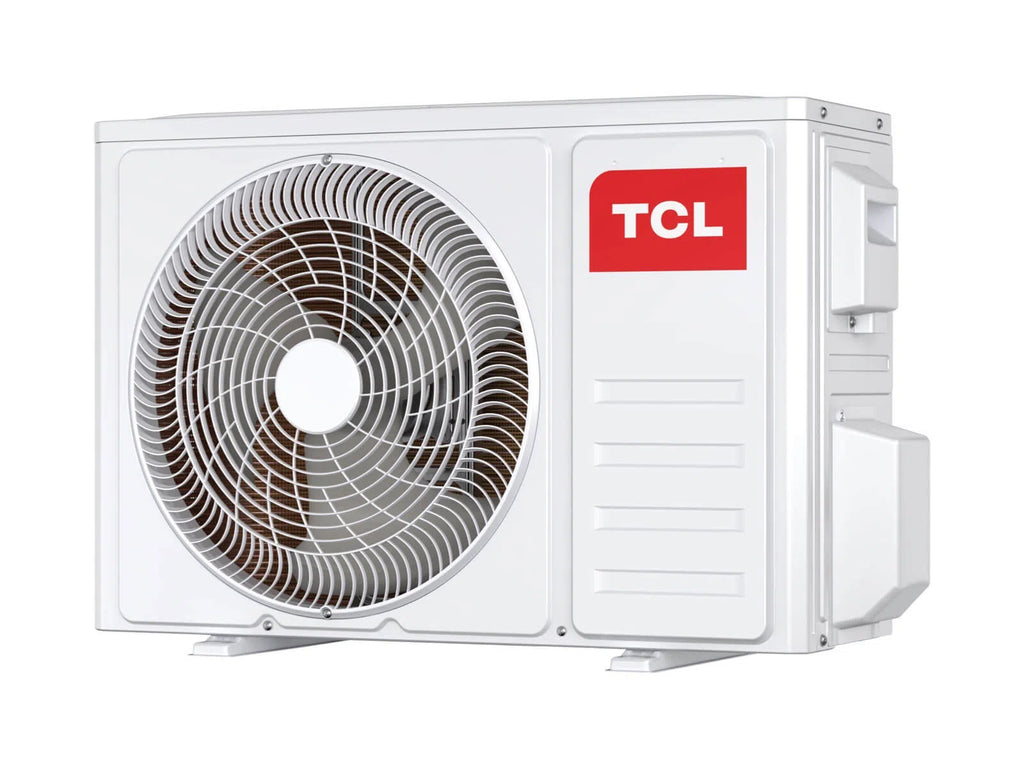

Outdoor Net dimensions (W x H x D) (mm) - 777×498×290
Indoor Net weight (kg) - 8.5
Outdoor Net weight (kg) - 22.5
Indoor Packing dimensions (W x H x D) (mm) - 860×345×265
Outdoor Packing dimensions (W x H x D) (mm) - 818×515×325
Indoor Gross weight (kg) - 10.5
Outdoor Gross weight (kg) - 25
